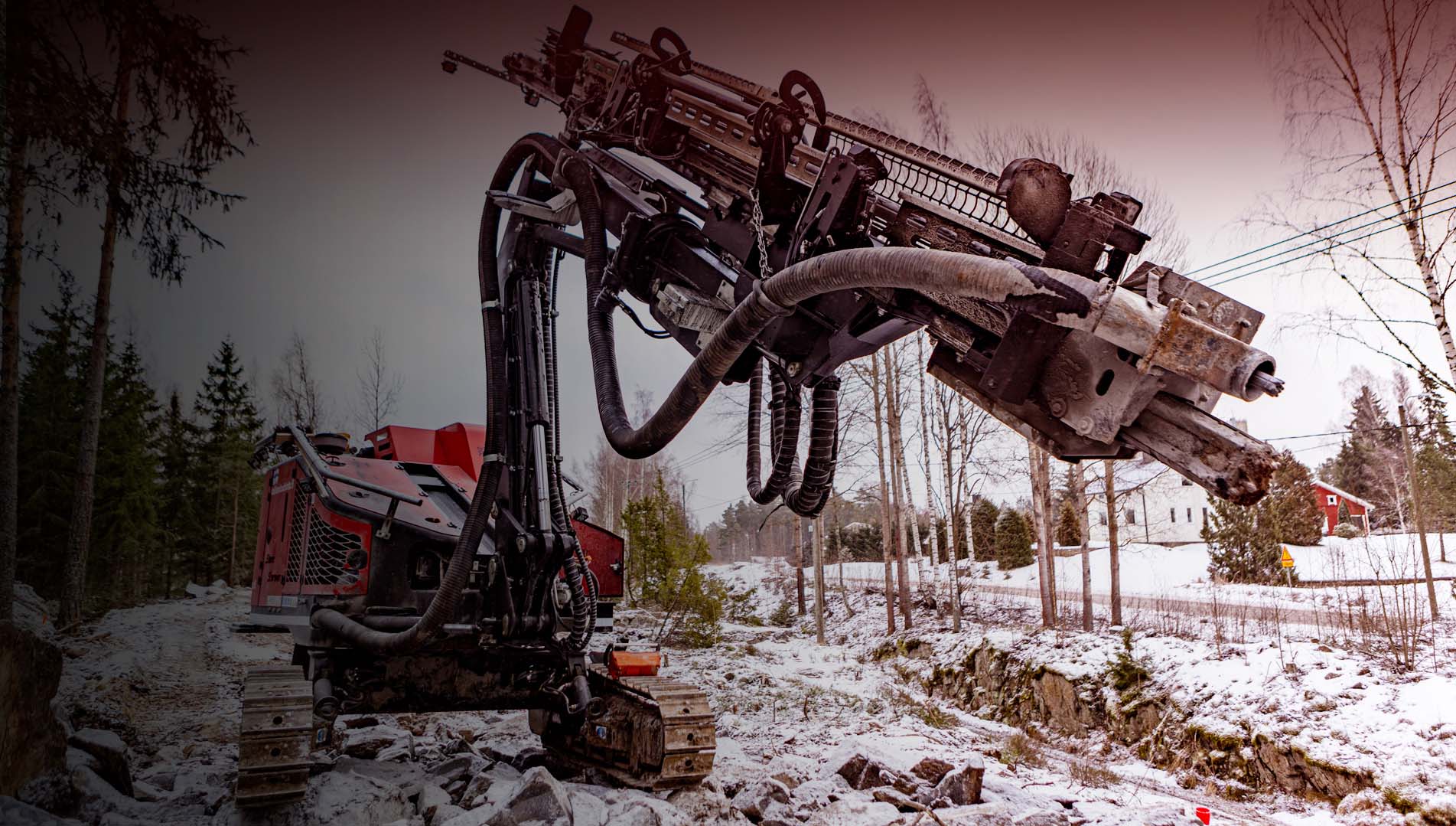

Stone Scorpion – for demanding work environments and tasks

Stone Scorpion crawler drill is an excellent solution for stepped excavation, bolting or natural stone quarries. Its superior advantages include compact size, wide reach and coverage, 350° turning superstructure, and rough terrain capabilities.

The equipment suits excellently to bolting and vertical or horizontal drilling at construction sites, canals, tunnels, mines, and stone quarries through all seasons. It can be used for drilling holes for explosives in excavation or blasting. It can operate with high precision in small spaces because of its small size, powerful rock drill, 350° turning superstructure and remote controllability. It is capable of operating underground as well.

Stone Scorpion

Hydraulic, rotating surface drilling rig

Browse images and features from the arrows below.

Suitable drill rod size is R32 / T38.
It is possible to replace a drifter by a rock splitter.
If there is need for both of them, it is possible to install them both to the same drilling attachment or install them in separate drilling attachments using fast coupling.

There is also a possibility to build Stone Scorpion to be a rail bound crawler drill.

Specially in urban areas it is important to reduce noise. There is a silencer available for a drilling attachment.

Stone Scorpion is available with the colors and look of your company’s brand. Ask more from your local distributor!

See Stone Scorpion in action!


350° turning superstructure, articulated boom and tilt, ±40° boom swing, 1300 mm feed beam zoom, chain feeder turning system 360°, boom extend 6 m, roof height with zoom 9 m, bore depth 5 m, working area ca 140 m2.
Montabert rock drill HC50, anti-jamming automation, drill rod handler. Less driving thanks to a 350° turning superstructure and boom’s large coverage.
Automatic feed angle adjusting system, angle gauge, borehole depth gauge, GPS/GNSS -level and compass, hydraulic front centralizer.
Tracks and oscillation technology provide good traction in demanding surfaces. Fits into small spaces: height 2.70 m, width 2.40 m. Remote control. Firm lift rings provide safety for transports. Transportation length 6 m, feed length 5.6 m, min ground clearance 0.30 m, curb weight 9 400 kg.
Developed, manufactured and tested in Finnish climate conditions.  Quality components: Cummins engine, Gardner Denver compressor, Lincoln central lubrication system. Load Sensitive axial piston pumps ensure adequate flow and pressure. Webasto, supplementary fuel-operated heater (with REMUC remote control as option). Reliability is based on operators’ years of user experience and feedback.
Stonepower-dust collector. In tunnels and underground flushing must be used.
Radio remote control by HAWE / HBC Radiomatic. Stone dust collection technology. Technical support and training from the manufacturer or distributor. Manuals and safety instructions.
Hose lengths have been minimized by optimizing valve locations. Ease of reaching the maintenance targets. Manufacturer and distributors support on spare parts supply, repair, service and other related technical issues. A large collection of pictures help to identify the service target and to maintain.
  • Tracks
  • Boom
  • Drilling attachment’s joint
  • Feeding device
  • Rock drill with safeguard
  • Dust collector
  • Main electric box
  • Compressor
  • Coolers
  • Diesel engine with aftertreatment system
  • Hydraulic pumps
  • Fuel tank
  • Hydraulic tank
  • Safety rope pull switch in the drilling attachment
  • Emergency stop switch in the carriage
  • Remote STOP
  • 350° turning superstructure
  • +/-40° boom swing
  • Remote control
  • Hydraulic front centralizer
  • Anti-jamming system
  • Shank lubrication system
  • Articulated boom
  • Chain feeder turning system 360° (rotator)
  • 1300 mm feed beam zoom
  • Dust collector system
  • Lights
  • Block heater
  • Winch
  • Manuals
  • Central lubrication system
  • Drill steel grinder
  • Angle gauge
  • Borehole depth gauge
  • Automatic feed angle adjusting system
  • GPS/GNSS level and compass
  • Webasto’s supplementary fuel-operated heater
  • REMUC-remote control for Webasto’s heater
  • Automatic anti-freeze system
  • Water flushing kit
  • Electric fuel pump
  • Drill rod handler
  • Fire extinguisher

Technical data

  • Drilling diameter 41–64 mm
  • Drilling depth 4–14,8 m
  • Weight 9 400 k
  • Rock tools R32/R38/T38
  • Application areas: Drill & blast, anchoring, trenching
  • Turning 350°
  • Speed max 3 km/h

  • Model: Montabert HC50
  • Drill rods R32 / T38
  • Borehole size 41-64 mm
  • Percussion pressure max 140 bar
  • Percussion power max 14 kW
  • Torque max 385 Nm
  • Flushing: air/water
  • Weight 103 kg

  • Model CF4300
  • Feed length 6 000 mm
  • Feed travel length max 4 050 mm
  • Starter max 4 300 mm (14 ft)
  • Feed: cylinder
  • Drill clamps: standard
  • Hose reel: standard
  • Feed beam zoom 1 300 mm
  • Incl of feeding device: x=+/- 180°, y=125°

  • Type: articulated boom
  • Reach 6 m
  • Working area 140 m2
  • Rotator 360°
  • Boom swing +/- 40°
  • Horizontal drilling left and right

  • Track type: ITR
  • Track width 300 mm
  • Ground clearance min 300 mm
  • Track oscillation +/- 12°

  • Type: Cummins B4.5, EU stage V
  • Tilt angle max 30°
  • Number of cylinders: 4
  • Power: 154 HP@2300 rpm, 115 kW
  • Fuel tank volume 200 l
  • Eco system: standard
  • Pump 2 LS

  • Type: Gardner Denver Tamrotor Tempest 6
  • Capacity: 3 m3/min
  • Pressure max 10 bar
  • Filters: 1 cyclone, 1 paper, 1 safety

  • Type: Stonepower DC9-600
  • Filter type: AFA 611
  • Number of filters: 9

  • Driving, boom, drilling: LS controlled
  • Filters: 2 pressure, 1 return
  • Cooling capacity Tamb < +50 °C
  • Hydraulic oil tank volume 250 l
  • Shank lubricator: Stonepower

  • Remote control: HBC (display as an option)
  • Anti-jamming automation: PLVC controlled
  • Voltage 24V DC

  • Weight with standard equipment 9 400 kg
  • Width 2.40 m
  • Height 2.70 m
  • Length 5.99 m
  • Length of the feeding device (transportation length) 5.6 m

  • Electric fuel pump
  • GNSS compass
  • GPS level
  • Rod carrousel 3×12 ft
  • Water flushing kit
  • Supplementary fuel-operated heater: Webasto
  • Central lubrication system: Lincoln
  • Drill steel grinder: Dynaset

Service and Support

Support from your local distributor

Your local Stonepower distributor is happy to help you with technical support, spare parts, maintenance and user training.
