Stone Spider – The largest Stonepower drilling rig

Stone Spider crawler drill is an excellent solution for stepped excavation, bolting or natural stone quarries.

Stone Spider is the biggest of all the Stonepower crawler drills. It maybe the biggest in Stonepower family but in comparison with other similar products it is very compact. A 14.5 ton crawler drill with tracks and 350° turning superstructure is capable to drill also in tight drilling targets.

Turning superstructure is a key factor in increasing the work efficiency. There is a considerable less need to move the crawler thanks to turnability of the superstructure and wide boom coverage. But when it is is necessary to move, tracks, oscillation and a good stability make it safe to move the drilling rig.

It is also easy to move the crawler drill further to another construction site, because its transportation height is only 3.2 m.

Spider has 6-cylinder engine with 175 kw power. Cummins has successfully put a lot of effort in fulfilling the newest environmental standards.

Versatile features

Big, but compact and agile

Browse images and features from the arrows below.

It is also possible to replace a drifter by a rock splitter or to choose them both. In that case they can be installed either in the separate drilling attachments that have fast coupling or they can be installed in the same drilling attachment.

In urban environment the minimizing of noise level is important. Noise level can be decreased by a silencer.

Stone Spider equipped with the SplitStone S150 wedge unit makes a perfect powerhouse for urban building sites that require efficient and noiseless quarrying in tight spaces!

The drill & split solution with Stone Spider crawler drill and SplitStone S150 wedge unit is an easy, efficient and safe solution to a variety of quarrying sites in urban conditions.

Read more about the Drill & Split solution!

Stone Spider has an automatic feed angle adjusting system and bore depth control. The system is capable of keeping the feed beam in the chosen angle and it shuts the drilling down when the chosen bore depth has been reached.

Remote control increases visibility around and in the drilling spot. It also increases work safety, because no one needs to enter the danger zone.

Stone Spider has HAWE hydraulics and logic as all the other Stonepower drilling rigs.

Spacious superstructure and many doors make service and maintenance easy.

Stone Spider is available with the colors and look of your company’s brand. Ask more from your local distributor!

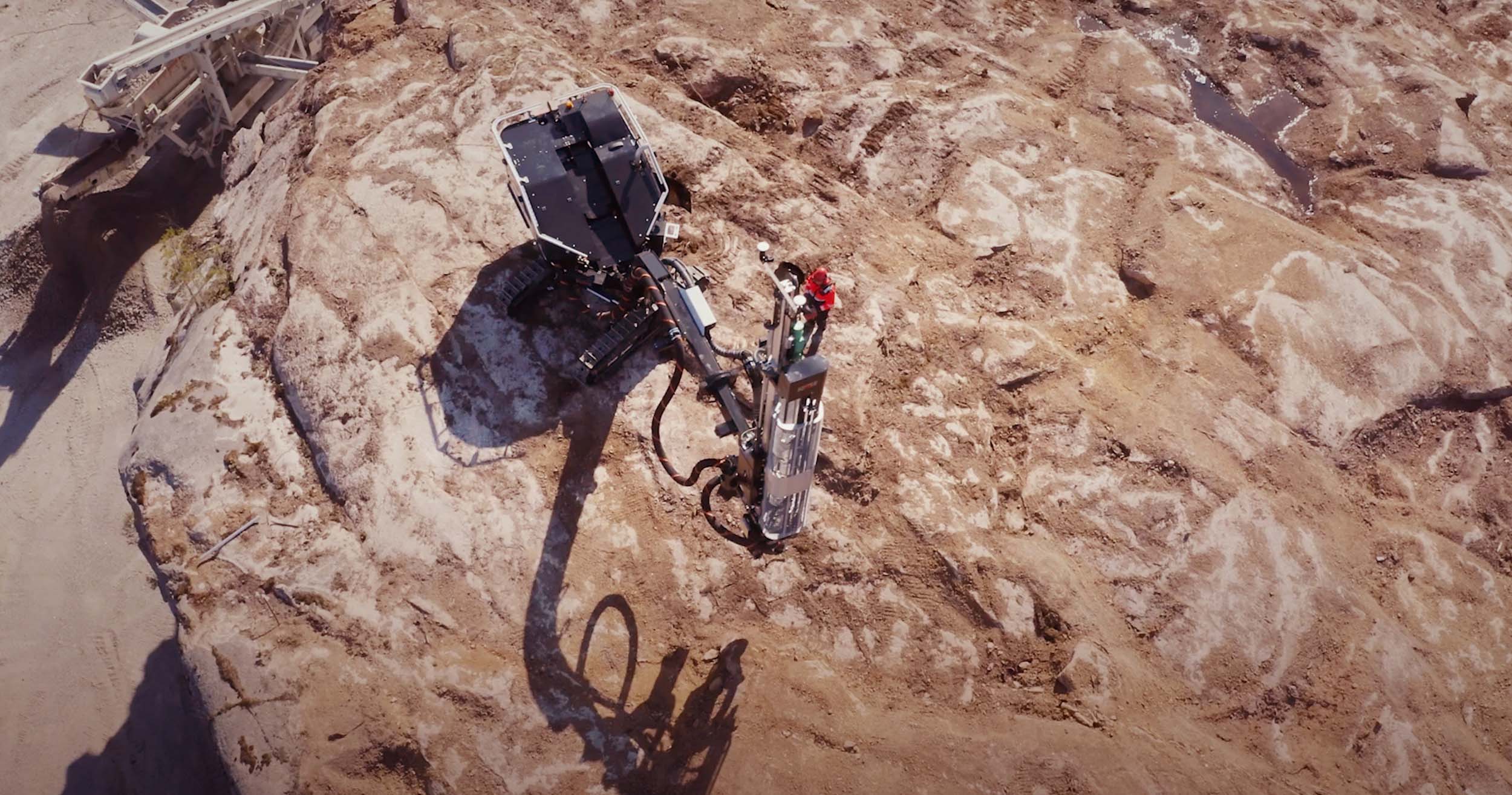

See the Stone Spider in action


350° turnable superstructure, articulated boom and a boom swing guarantees an excellent reach without additional transfers. Rotator / Chain feeder turning system 360°. Working area ca 130 m2.
Less driving thanks to a 350° turnable superstructure and boom’s large coverage. Rock splitter (option). An efficient Cummins motor. HAWE load sensitive axial piston pumps ensure adequate flow and pressure.
Automatic feed angle adjusting system. GPS/GNSS-based system (option) for localization and steering information. Hydraulic front centralizer.
Tracks and oscillation technology provide good traction in demanding surfaces. Remote control HBC Radiomatic. Firm lift rings provide safety for transports. Transportation length 6.6 m. Min ground clearance 0.3 m. Curb weight 14 500 kg.
Developed, manufactured and tested in Finnish climate conditions. Quality components: Cummins, Gardner Denver, HAWE, Montabert, Splitstone (option), Lincoln etc. – many options available, let’s find the best configuration for your needs! Webasto, supplementary fuel-operated heater (option) with REMUC remote control system (option). Automatic anti-freeze system (option). Reliability has been tested by using Stonepower equipment in northern climate for already over 10 years and by listening carefully professional operators’ feedback.
Stonepower dust collector. Prefiltering system for dust collector. Water flushing system;  in tunnels and underground flushing must be used.
Radio remote control. Stone dust removal technology. Winch secures the stability of the crawler drill. Cummins engines fulfill the environmental norms. Quality Kappaflex hoses and Hawe hydraulic valves minimize risks of oil spill. Fire extinguisher Rotating superstructure declines the need for tramming and thus declines the risks related to tramming. Silencer for a drilling attachment (option). Technical support and training directly from the manufacturer. Manuals and safety instructions.
Hose lengths have been minimized by optimizing valve locations. Ease of reaching the maintenance targets. Manufacturer and distributors support on spare parts supply, repair, service and other related technical issues. A large collection of pictures help to identify the service target and to maintain.

Central lubrication system.

  • Tracks
  • Articulated boom
  • Drilling head’s joint
  • Feeding device
  • Drifter
  • Safeguard with emergency-stop functionality
  • Dust collector
  • Main electric box
  • Display
  • Diesel engine EU Stage V with aftertreatment system
  • Hydraulic pumps (3 pcs)
  • Compressor
  • Coolers (3 pcs)
  • Fuel tank
  • Hydraulic tank
  • Emergency stop switch in the carriage and in the drilling attachment
  • Stop switch in the remote control
  • Remote control (logic, radio system, display) with remote STOP
  • 350° turnable superstructure
  • +/-40° boom swing
  • Articulated boom with rotator (360° rolling drilling head)
  • 1 300 mm feed beam zoom
  • Hydraulic front centralizer
  • Drill rod magazine for 8 rods
  • Anti-jamming automation
  • Shank lubrication system
  • Dust collector system with dust preseparator
  • Hydraulic outrigger
  • Block heater
  • Lights
  • Winch
  • Manuals
  • Fast coupling for drilling attachment
  • Silencer for drilling attachment
  • Electric fuel pump
  • Automatic feed angle adjusting system
  • Angle gauge
  • Borehole depth gauge
  • GNSS compass
  • GPS/GNSS-level
  • L5-navigation system
  • Webasto’s supplementary fuel-operated heater
  • REMUC remote control system for Webasto heater
  • Lincoln central lubrication system
  • Water flushing system
  • Automatic anti-freeze system
  • Drill & Split solution wedge unit
  • Toolbox
  • Fire extinguisher
  • Dynaset drill steel grinder
  • Business stickers

Technical data

  • Drilling diameter 45–89 mm
  • Drilling depth 4–26 m
  • Weight 14 500 kg
  • Rock tools T38/T45/T51
  • Application areas: Drill & blast, quarry, benching
  • Turning 350°
  • Speed max 3 km/h

  • Model: Montabert HC95
  • Drill rods T38, T45, T51
  • Borehole size 45-89 mm
  • Percussion pressure max 200 bar
  • Percussion power max 24 kW
  • Torque max 764 Nm
  • Flushing: air/water
  • Weight 185 kg

  • Model CF4900
  • Feed length 6 600 mm
  • Feed travel length max 4 050 mm
  • Starter max 4 900 mm (16 ft)
  • Feed: cylinder
  • Drill clamps: standard
  • Hose reel: standard
  • Feed beam zoom 1 300 mm
  • Incl of feeding device: x=+/- 180°, y=125°

  • Type: articulated boom
  • Reach 5.8 m
  • Working area 130 m2
  • Rotator 360°
  • Boom swing +/- 40°
  • Horizontal drilling left and right

  • Track type: Bergo 6
  • Track width 310 mm
  • Ground clearance min 300 mm
  • Track oscillation +/- 12°
  • Tramming force 173 kN
  • Mechanical locking of the upper carriage

  • Type: Cummins B6.7, EU stage V
  • Tilt angle max 30°
  • Number of cylinders: 6
  • Power: 175 kW@2500 rpm
  • Fuel tank volume 500 l
  • Eco system: standard, DOC, DPF
  • Pump 3 LS

  • Type: Gardner Denver
  • Capacity (at 7 bar): 1,1–7,3 m3/min
  • Pressure range 3–14 bar
  • Filters: 1 cyclone, 1 paper, 1 safety

  • Type: Stonepower DC16-600
  • Filter type: AFA 611
  • Number of filters: 16

  • Driving, boom, drilling: LS controlled
  • Filters: 2 pressure, 2 return
  • Cooling capacity Tamb < +50 °C
  • Hydraulic oil tank volume 300 l
  • Shank lubricator: Stonepower

  • Remote control: HBC with display
  • Anti-jamming automation: PLVC controlled
  • Voltage 24V DC

  • Electric fuel pump
  • GNSS compass
  • GPS level
  • L5 navigation system
  • Water flushing kit
  • Supplementary fuel-operated heater: Webasto
  • Lubrication system: Lincoln
  • Drill steel grinder: Dynaset
